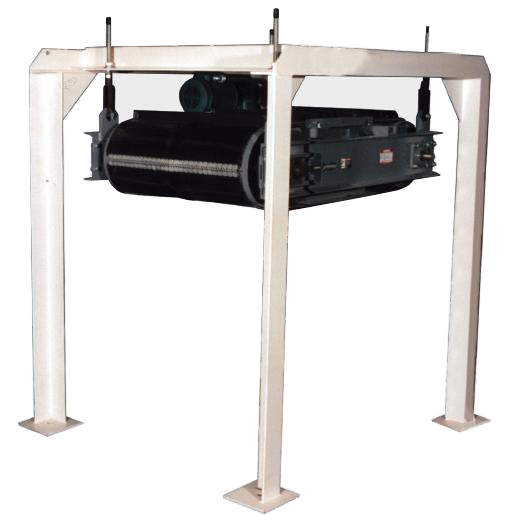

Cross belt magnetic separators are used to remove ferrous contaminants, such as tramp metals, including nuts, bolts, wire and banding from material being processed. Cross conveyor provides large area of coverage for a continuous self cleaning operation. Durable cleated belt transports ferrous contaminant objects into collection bin.
Unit of Measure

Specifications

Brands

 N/A Vecoplan®

Voltage

 N/A 230 V460 V

Frequency

 N/A 60 Hz

Magnet Length

 N/A 18 in

Magnet Width

 N/A 28 in

Magnet Height

 N/A 10 5/8 in

Belt Speed

 N/A 275 fpm

Motor Power

 N/A 1 hp

Number of Phase

 N/A 3

Mount Type

 N/A Side Top

Frame Material

 N/A Structural Mild Steel

Features

 N/A Vecoplan’s BridgeBreaker prevents “bridging” - material that gets wedged into position between the sidewalls and hangs there, unable to be processed. The BridgeBreaker clears these wedges so the shredder can continue normal processing operations.

Additional Information

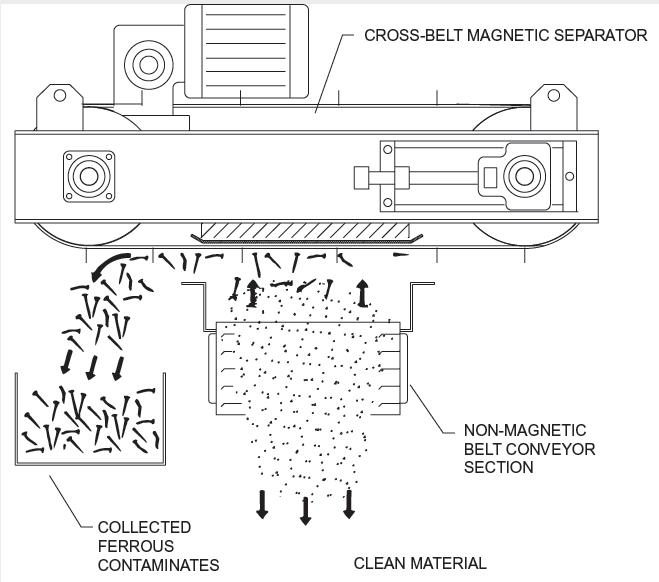

N/A Cross belt magnetic separators are used to remove ferrous contaminants (tramp iron such as nuts, bolts, wire, banding, etc.) from the conveyed material. The cross-belt design provides a large coverage area. You get continuous self-cleaning protection. The unit can be mounted over the conveyor section using the four eyebolts secured at the top of the frame. The cross-belt magnetic separator has a durable cleated belt which conveys the ferrous contaminants to the side of the conveyor and are discharged to a collection bin.

Frame is structural mild steel,magnet has stainless steel face and mild steel sides and back. Magnetic material creamic V design for optimum reach-out. Top or side mounted 1 hp. 230/460 V. 3 ph. 60 Hz. gear motor with a belt speed of 275 fpm. Available in right or left hand drive.
