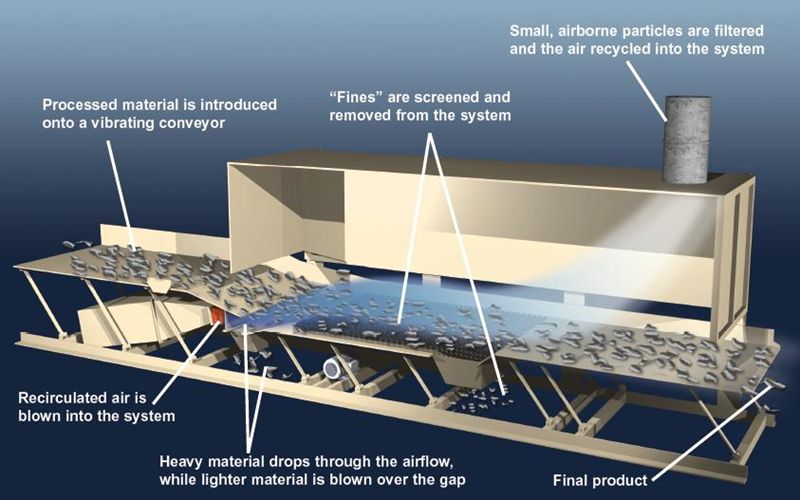

For the separation of low density fraction out of pre-shred production waste, mixed construction waste, plastic waste from the pulper as well as municipal and industrial waste. The final product is a high calorific fuel which can be re-shred and pelletized.
Unit of Measure

Specifications

Brands

 N/A Vecoplan®

Length

 N/A 7,300 in

Width

 N/A 2,500 in

Height

 N/A 2,800 in

Conveyor Motor Power

 N/A 2.2 kW

Approximate Amount of Air Exhaust

 N/A 4000 m³/h

Voltage

 N/A 400 V

Frequency

 N/A 50 Hz

Current

 N/A 125 A

Number of Phase

 N/A 3

Number of Fan Motors

 N/A 2

Fan Motor Power

 N/A 30 kW

Air Flow Rate

 N/A 20,000 m³/h

Features

 N/A
  • Main Dimensions: (l x w x h): 7,300 x 2,500 x 2,800
  • Fan Motors: 2 x 30 kW
  • Air Flow: 2 x 20,000 m³/h
  • Conveyor Motor: 2.2 kW
  • Air Amount to be Cleared: 4,000 m³/h
  • Voltage: 400/3/50 Hz, 125 A
  • Exhaust: approximately 4,000 m³/h

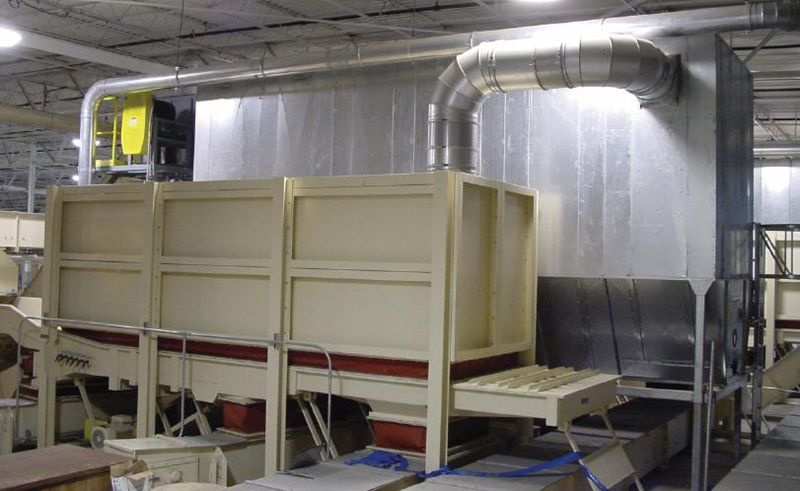

  • For stationary installations we recommend mounting a filter unit above the cross-stream-separator
