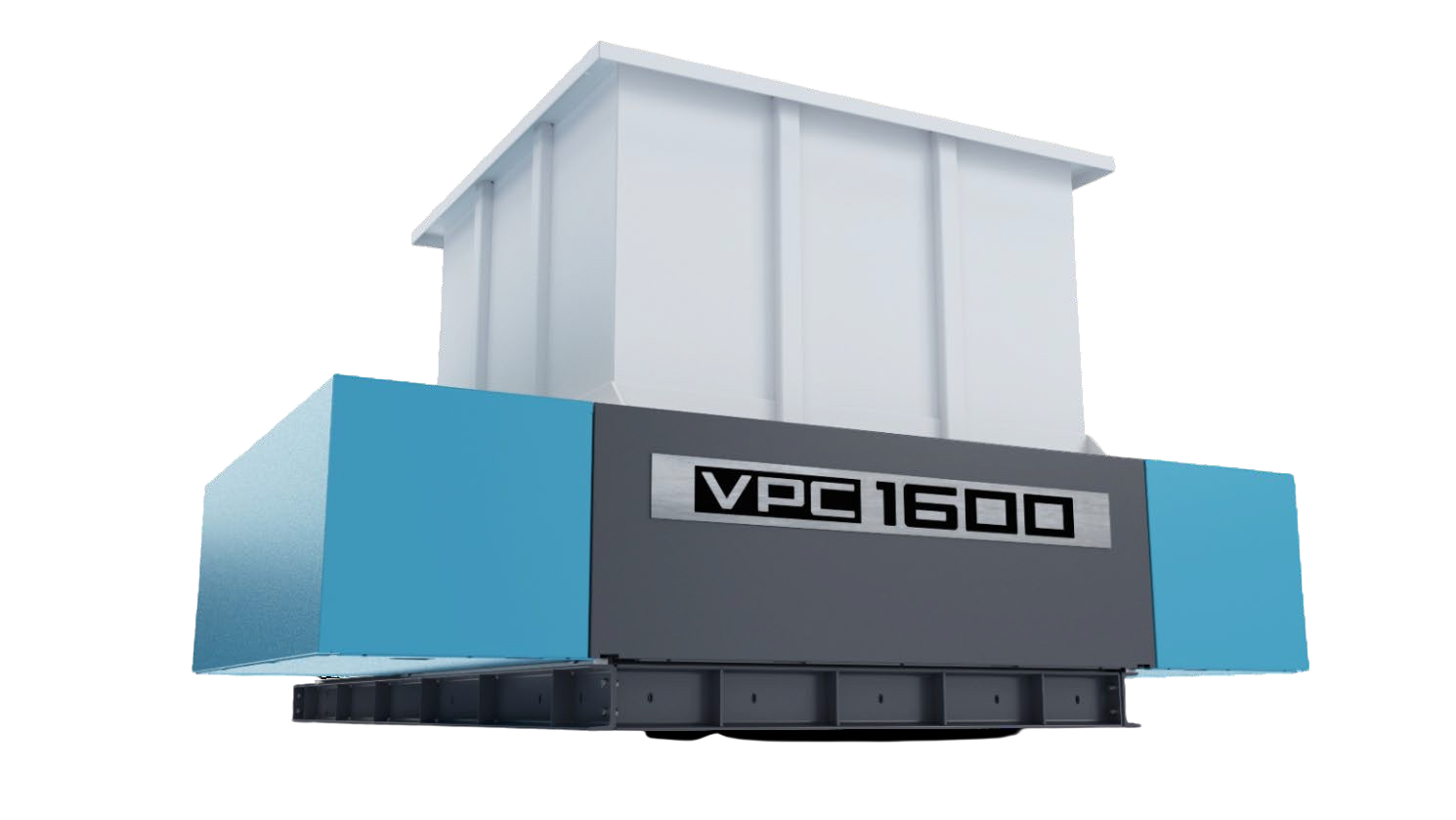

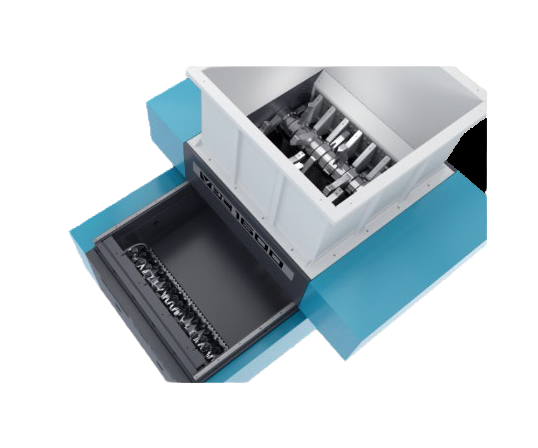

The Vecoplan VPC 1600 is specifically designed for the size reduction of large or bulky wood waste materials such as pallets, crates, CNC skeletons, drums, wooden reels and shipping dunnage. When added to a Vecoplan industrial wood grinder, the overall system capacity can be increased by as much as 200%. The VPC 1600 sits on top of a Vecoplan wood grinder offering an industry first all-in-one two-stage size reduction process involving crushing and grinding, maximizing efficiency and throughput.
Unit of Measure

Specifications

Brands

 N/A Vecoplan®

Infeed Opening Width

 N/A 63 in

Infeed Opening Length

 N/A 63 in

Rotor Diameter

 N/A 30 in

Rotor Length

 N/A 63 in

Rotor Speed

 N/A 10 rpm

Number of Crusher Arms

 N/A 32 pieces

Number of Counter Breakers

 N/A 16 pieces

Number of Motors

 N/A 2

Motor Power

 N/A 15 hp

Overall Width

 N/A 123 in

Overall Height

 N/A 32 in

Overall Length

 N/A 75 in

Input Material

 N/A Computer Numerical Control (CNC) Skeletons Drums Pallets Shipping Dunnage Wooden Cable Reels Wooden Crates

Features

Features

 N/A
  • Two conventional geared motored drives with frequency converters
  • Two 15 HP drive motors
  • Two independent, reversible rotors
  • The VPC can be seamlessly combined with a Vecoplan® shredder
  • When combined with a Vecoplan® shredder, throughput is increased 50-200% depending on model
