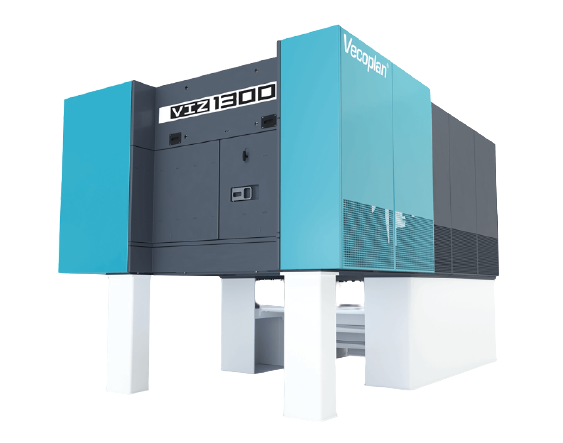

Infinitely flexible - The highly configurable plastics shredding machine

Do you have the challenge of frequently-changing materials with different requirements? The VIZ offers an outstandingly-efficient and adaptable machine concept without taking up lots of space.

What distinguishes Vecoplan® drives:
  • Frequency-controlled drive
  • Variably adjustable speed range
  • Foreign object detection
  • Highly dynamic drive with fast reversing and restarting
Unit of Measure

Specifications

Brands

 N/A Vecoplan®

Infeed Opening Width

 N/A 50 in

Infeed Opening Length

 N/A 48 in

Rotor Diameter

 N/A 20 in

Motor Power (ESC Drive)

 N/A 125 hp150 hp

Cutter Size (U Rotor)

 N/A 40 x 40 mm

Cutter Size (V Rotor)

 N/A 23 x 23 mm40 x 40 mm

Cutter Size (W Rotor)

 N/A 23 x 23 mm40 x 40 mm60 x 60 mm

Overall Width (ESC Drive)

 N/A 99 in

Overall Length (ESC Drive)

 N/A 112 in

Rotor Speed

 N/A 50 to 250 rpm

Additional Information

Additional Information

 N/A Customize your shredder from A to VIZ

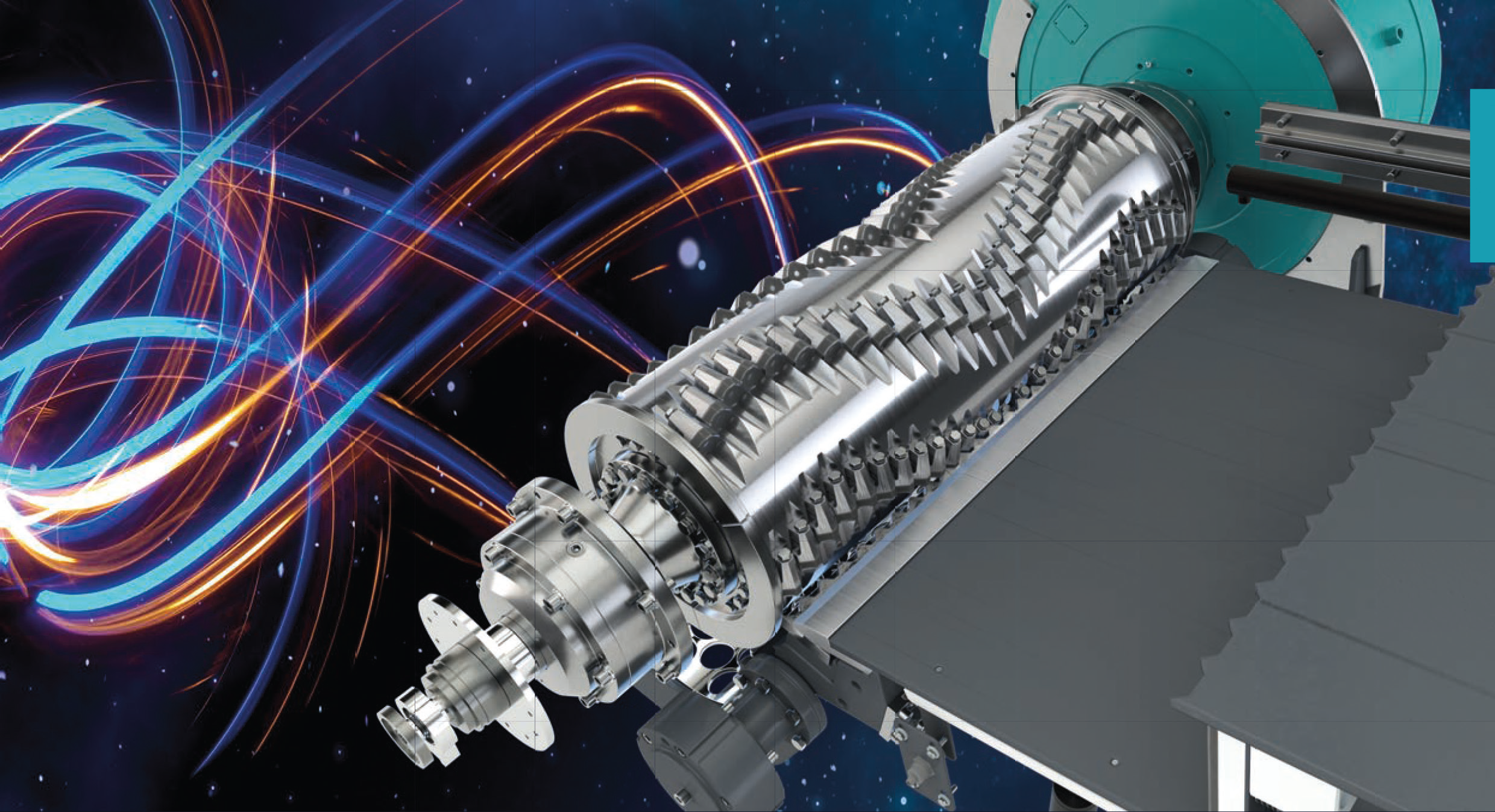

Configure the Vecoplan® Infinity shredder to match your requirements. Select between the HiTorc™ drive with its powerful start-up phase and high torque, or the frequency-controlled ESC belt-type direct drive.

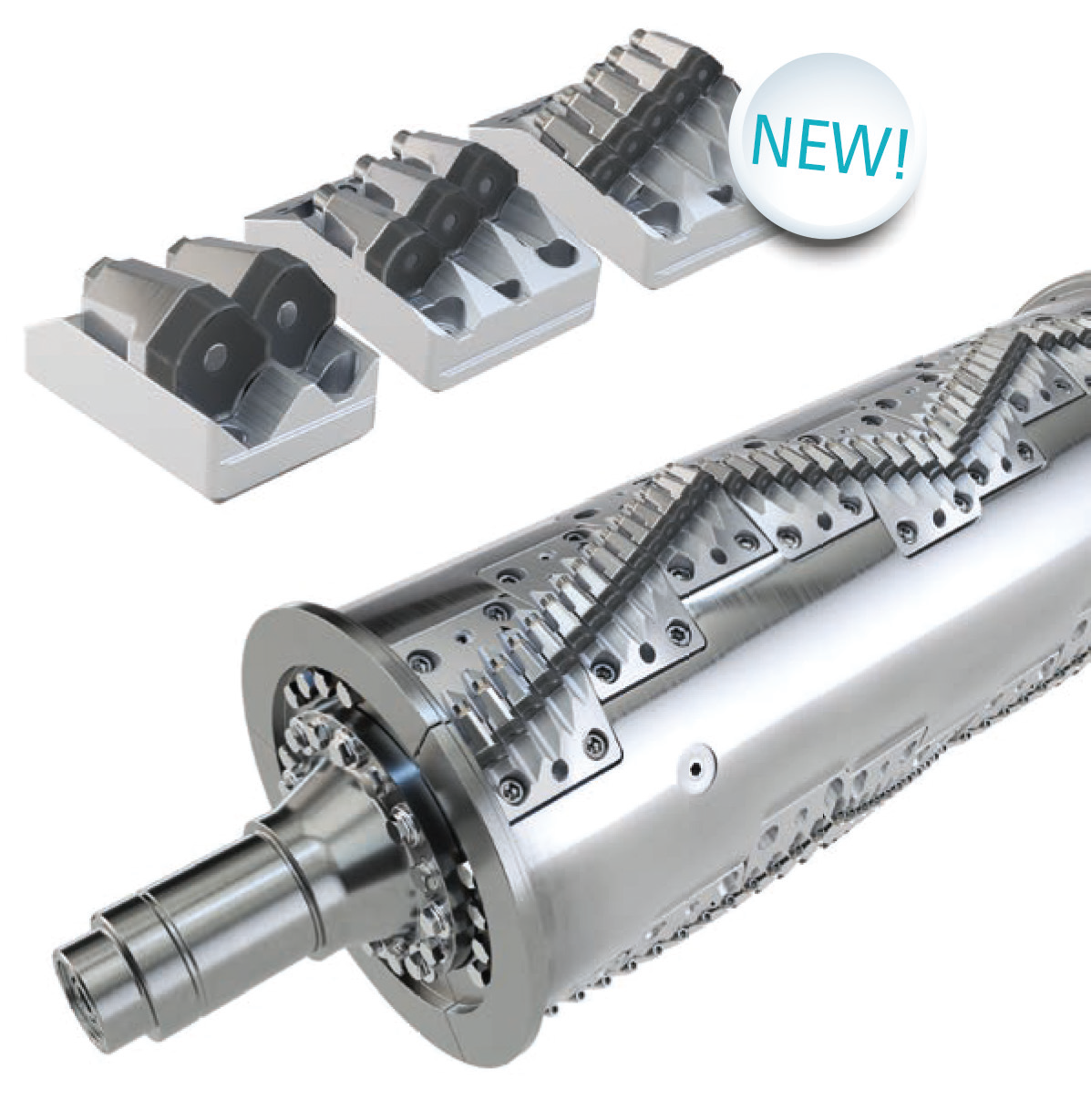

Transform your changeovers with the W rotor
Infinitely adaptable and easier to maintain than ever before

The W rotor from Vecoplan® offers numerous advantages in terms of cutting geometry. Bolted tool holder plates with variable cutting tip sizes make rotor changes a thing of the past.

Do your output particle requirements often change? With the W rotor, multiple cutters are attached to a removable cutter holder plate. The result is reduced time spent changing cutter size because the rotor remains in the machine. The ergonomic accessibility of the rotor further makes changeovers easier than the traditional method.

In the event of a damaged cutter-holder segment, only the relevant segment is replaced instead of having to weld in individual holders or completely changing the rotor.

Infinite Fexibility for Changing Requirements

Drive Selection

 N/A
Either the patented ESC drive ...or the patented HiTorc™ drive
  • Cost-effective operation
  • Slippage detection in real time
  • Intelligent, self-regulating drive
  • Low maintenance and wear
  • Synchronous motor as a direct drive without a mechanical drive train
  • Highest possible torque at low speed
  • Trouble-free start-up phase, even with a full hopper
  • Maintenance-free and wear-free
  • Remarkably quiet

Rotor Selection

 N/A W/V rotor
  • Maximum cutting performance and high throughput
  • Homogeneous output quality with minimum fine dust and little particle variance
  • Variable number of cutters from single row, triple row up to fivefold (W rotor only) row of cutters depending on cutter size
  • Optional bolted tool holders for more flexibility and ease of maintenance
U rotor
  • Profiled with toothed counter knife
  • Variable number of cutters from single row up to triple row of cutters depending on cutter size

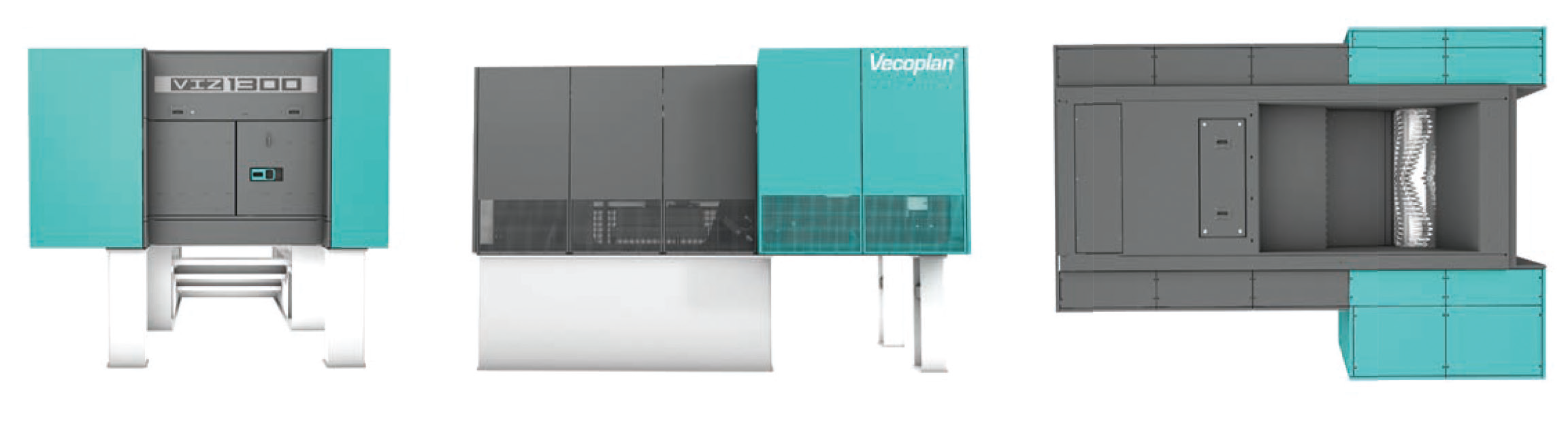

Optimized Machine Construction

 N/A
  • Large shredding chamber for shredding bales
  • Optional subsequent integration of a second counter knife
  • Contoured design for better cleaning and reduced susceptibility to dirt

Ram

 N/A
  • Improved ram height makes the VIZ suitable for shredding bales and bulky pieces
  • Distance to rotor is minimized, reducing material residues
  • The 'pulling' design of the ram hydraulic unit prevents dirt and contamination, saves space and improves accessibility

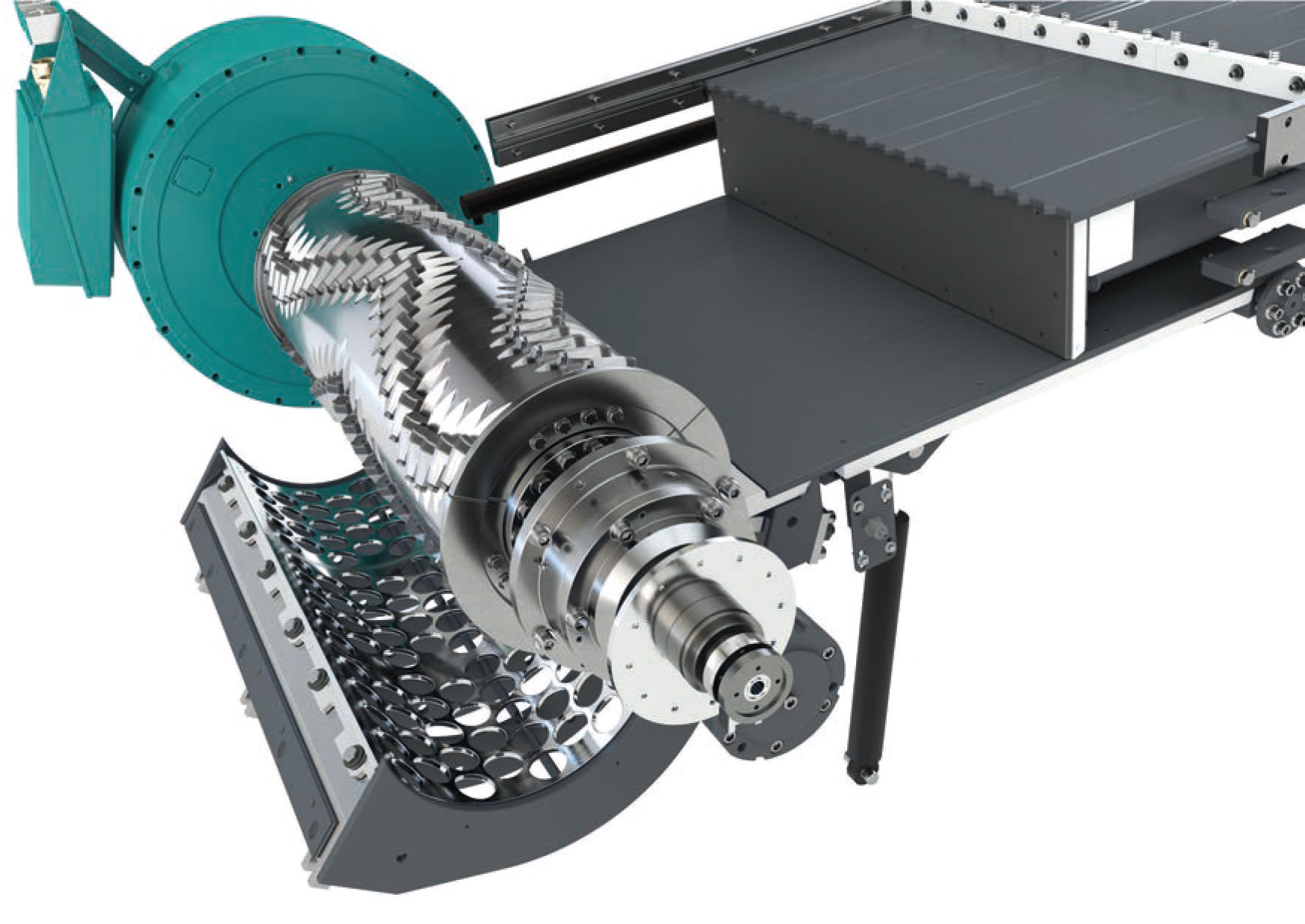

Screen

 N/A
  • Swing-out, robust screen
  • Simple, quick and safe exchangeability
  • Additional screens available for varying output sizes
  • Variable positioning of the screen segments gives wear parts maximum life

Note

Note

 N/A Subject to technical changes. Detailed dimensional drawings and load data available on request. As at: 10/2019
