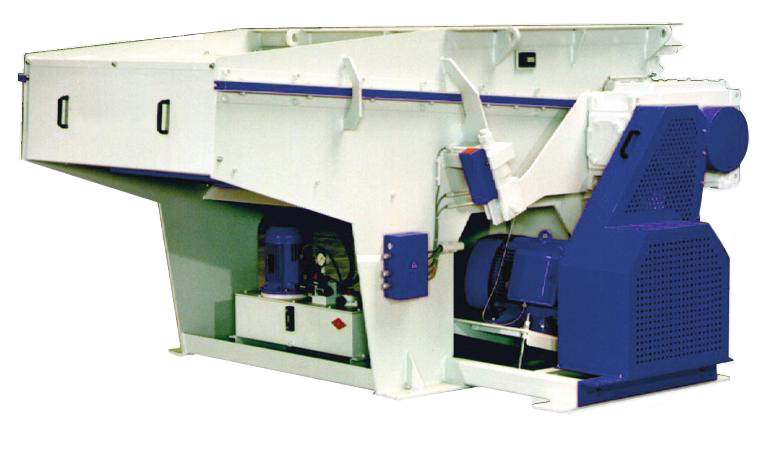

The VAZ 1300 S FF Rotary Shredder with the SureCut™ Cutting System is designed specifically for single-stage reduction of plastic films and synthetic fibers being reclaimed for extrusion. The FF Series is built for high throughput, has built-in metering capabilities and thermal monitoring controls. Benefits of the SureCut™ Cutting System include precise cut lengths and high bulk densities.
Unit of Measure

Specifications

Brands

 N/A Vecoplan®

Hopper Opening Length

 N/A 50 in

Hopper Opening Width

 N/A 52 in

Hopper Volume

 N/A 3.25 yd³

Rotor Diameter

 N/A 15 in

Number of Cutters

 N/A 60

Rotor Speed

 N/A 120 rpm

Drive Motor Power

 N/A 100 hp

Feed System (hp/Speed)

 N/A 3 to 5/2

Machine Weight

 N/A 11,000 to 13,900 lb

Voltage

 N/A 460 V

Number of Phase

 N/A 3

Frequency

 N/A 60 Hz

Knife Gap

 N/A 0.015 in

Nipper Cutter

 N/A 29

Cutter Size

 N/A 40 x 40 mm

Standards

 N/A International Organization for Standardization (ISO 9001)

Options

 N/A Airspring Counterknife for High Tramp Metal Content Application Specific Programming and Control Integration Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation Hydraulic “BridgeBreaker” Vertical Feed Ram Multiple Cutter Insert Sizes Multiple Rotor Configurations Optional Control Brands Quick Disconnect and Quick Clean Screens Special Purpose Screens Variable Frequency Drives

Features

 N/A SureCut™ Cutting System
  • Low Speed / High Torque Design
  • PLC Controls / Touch Pad Monitoring
  • Tramp Metal Protection
  • Large Infeed Hopper
  • Precision Hydraulic "Process Ram"
  • Special Composite 4-Way Indexable Cutting Inserts
  • Rugged Hydraulics
  • Lifetime Limited Warranty on Cutting Rotor
  • Heavy Oversized Outboard Spherical Roller Bearings
  • Fluid “TurboCoupling”
  • ISO 9001 Manufactured
  • Hinged Protective Cylinder Covers
  • 0.015 in Knife Gap for Thin Materials
  • Easy Access Screen
  • Critical Duty Drivetrain
  • Passive Programming for Self-Feed Materials
  • Wear Resistant Siderails and Cutting Chamber
  • Reinforced Screens
  • Heavy Viscosity Fluids
  • Diverter Plate Over Cutting Rotor
  • Built-In Thermal Monitoring Controls for rotor
