  • VAZ Series Single Shaft Shredders

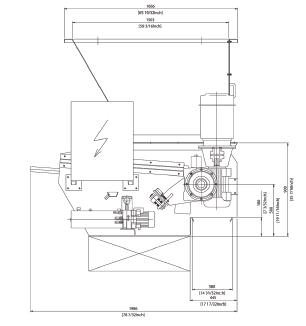

  • VAZ Series Single Shaft Shredders - Schematic Diagram
VAZ Series Single Shaft Shredders
1 - 25 of 27 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Item Name

Hopper Opening Length

Hopper Opening Width

Hopper Volume

Rotor Diameter

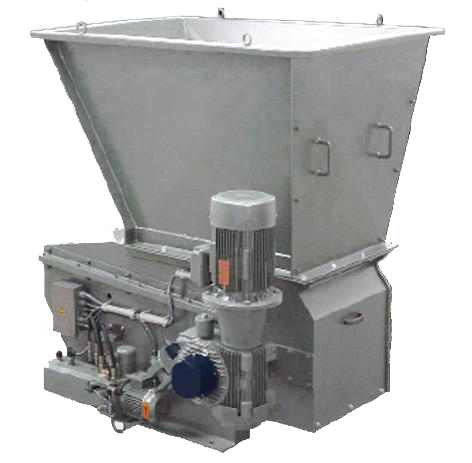

N/A VAZ 600 XL MW Series Single Shaft Shredder N/A 38 in N/A 24 in N/A 1.15 yd³ N/A 15 in
N/A VAZ 700 Z Series Single Shaft Shredder N/A 28 in N/A 32 in N/A 0.75 yd³ N/A 6.5 in
N/A VAZ 800 Series Single Shaft Shredder N/A 42 in N/A 32 in N/A 1.3 yd³ N/A 10 in
N/A VAZ 800 XL MW Series Single Shaft Shredder N/A 45 in N/A 32 in N/A 1.3 yd³ N/A 15 in
N/A VAZ 1100 Series Single Shaft Shredder N/A 48 in N/A 42 in N/A 2.9 yd³ N/A 10 in
N/A VAZ 1100 K Series Single Shaft Shredder N/A 48 in N/A 42 in N/A 2.9 yd³ N/A 10 in
N/A VAZ 1100 K XL Series Single Shaft Shredder N/A 50 in N/A 42 in N/A 2.9 yd³ N/A 15 in
N/A VAZ 1100 XL Series Single Shaft Shredder N/A N/A N/A 3.1 yd³ N/A 15 in
N/A VAZ 1100 XL K FF Series Single Shaft Shredder N/A 52 in N/A 42 in N/A 2.9 yd³ N/A 15 in
N/A VAZ 1100 XL MW Series Single Shaft Shredder N/A 52 in N/A 42 in N/A 2.9 yd³ N/A 15 in
N/A VAZ 1100 XL XR Series Single Shaft Shredder N/A N/A N/A 3.1 yd³ N/A 15 in
N/A VAZ 1300 M FF Series Single Shaft Shredder N/A 58 in N/A 52 in N/A 3.75 yd³ N/A 15 in
N/A VAZ 1300 M MW Series Single Shaft Shredder N/A 58 in N/A 52 in N/A 3.75 yd³ N/A 15 in
N/A VAZ 1300 S FF Series Single Shaft Shredder N/A 50 in N/A 52 in N/A 3.25 yd³ N/A 15 in
N/A VAZ 1300 S MW Series Single Shaft Shredder N/A 50 in N/A 52 in N/A 3.25 yd³ N/A 15 in
N/A VAZ 1600 M FF Series Single Shaft Shredder N/A 80 in N/A 63 in N/A 6.3 yd³ N/A 15 in
N/A VAZ 1800 Series Single Shaft Shredder N/A 82 in N/A 70 in N/A 10.25 yd³ N/A 20 in
N/A VAZ 1800 FF Series Single Shaft Shredder N/A 86 in N/A 70 in N/A 11 yd³ N/A 20 in
N/A VAZ 1800 XL Series Single Shaft Shredder N/A 86 in N/A 70 in N/A 11 yd³ N/A 25 in
N/A VAZ 1800 XL FF Series Single Shaft Shredder N/A 86 in N/A 70 in N/A 11 yd³ N/A 25 in
N/A VAZ 2000 RS Series Single Shaft Shredder N/A N/A N/A N/A 25 in640 mm
N/A VAZ 2000 [R]M Series Single Shaft Shredder N/A N/A N/A N/A 25 in640 mm
N/A VAZ 2500 RS Series Single Shaft Shredder N/A N/A N/A N/A 25 in640 mm
N/A VAZ 2500 [R]M Series Single Shaft Shredder N/A N/A N/A N/A 25 in640 mm
N/A VAZ 2500 L Series Single Shaft Shredder N/A N/A N/A N/A 25 in640 mm
