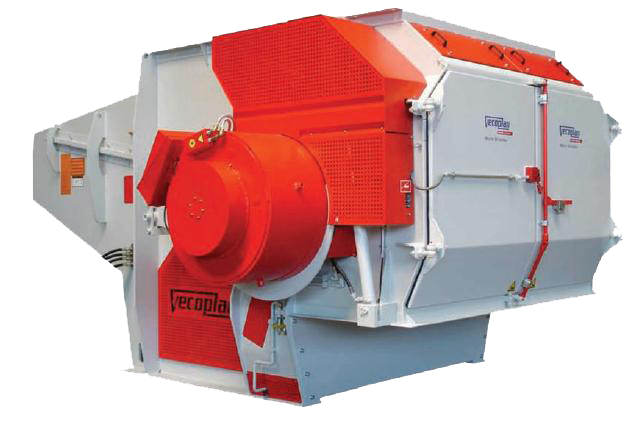

Vecoplan® VAZ 2000 RS Waste Shredders are designed especially for processing domestic and commercial waste for alternative fuel production, paper and plastic waste for reclamation and recycling, large extruder purgings, large reject parts, trim scraps, baled or loose film, synthetic fiber, wood processing scrap, medical waste, cardboard, paper and carpet.
Unit of Measure

Specifications

Brands

 N/A Vecoplan®

Rotor Diameter

 N/A 25 in640 mm

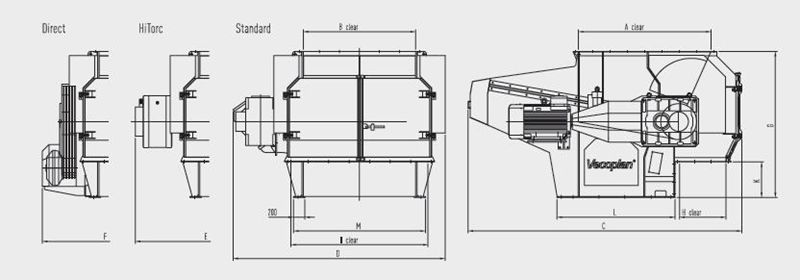

Infeed Opening Length (A)

 N/A 78 in

Infeed Opening Width (B)

 N/A 63 in

Overall Length (C)

 N/A 150 in

Overall Width with HiTorc® (E)

 N/A 145 in

Overall Width with Belt Drive (F)

 N/A 135 in

Overall Height (G)

 N/A 92 in

Material Outlet Length (H)

 N/A 31 in

Material Outlet Width (I)

 N/A 96 in

Material Outlet Height (K)

 N/A 23 in

Machine Stand Length (L)

 N/A 77 in

Machine Stand Width (M)

 N/A 92 in

Maximum Weight

 N/A 35,700 lb

Capacity

 N/A Up to 25 ton

Energy Savings

 N/A Up to 60 %

Approximate Shredding to Particle Size

 N/A 10 to 250 mm3/8 to 10 in

Patented Rotor System

 N/A Profiled rotor with toothed counter knives - a Vecoplan® patent. A choice of 40, 60, 80 or 140 mm cutting crowns or flat cutters. Depending on the size, available with variable number of cutters, from single-row up to four rows.

Cutter Size

 N/A 140 mm40 mm60 mm80 mm

Standards

 N/A International Organization for Standardization (ISO 9001)

Standard Drive Version

 N/A Tried and tested shredder for single-stage shredding with a constant rotor speed of 150 rpm. Main drive via e-motor, cardan shaft, hydraulic coupling and gears.

Direct Drive Version

 N/A Extremely powerful shredder for re-shredding with a constant rotor speed of approximately 410 rpm. Main drive via e-motor, hydraulic coupling and belt drive with electronically monitored sliding hub.

Features

 N/A 4-Way, Indexable Cutting Inserts 640 mm (25 in) rotor diameter Capacity up to 25 t Easy Accessibility Equity “Buyback” Guarantee Heavy Spherical Roller Bearings Heavy-Duty Construction High Output “Torsion Point” Cutting Rotor Hydraulic feeding ram ISO 9001 Manufactured Large Infeed Hopper Multiple tramp metal protection Oversized Drivetrain PLC Control Panel Shredding to particle size of approximately 10 to 250 mm (3/8 to 10 in), according to preference Stress-Free Frame, Robotically Welded Tramp Metal Protection

Application

 N/A Two re-shredders producing RDF (refuse derived fuel) from manufacturing and commercial waste.

Manufacturing Notes

 N/A Detailed dimension drawings and load data available on request.

HiTorc® Drive Version

N/A Shredder for single-stage shredding with a variable rotor speed of approx. 0 to 360 (410) rpm with the energy saving HiTorc® drive. The automatic speed controller allows the rotor to turn quickly when the materials are easy to shred, and more slowly with more torque when processing tougher materials. Thus, HiTorc™ equipped single-stage shredders enable up to 70 % higher capacity in most applications with energy savings up to 60 %.
